3mm-25mm G-Crystal Ultra Clear Float Glass
3mm-25mm G-Crystal Ultra Clear Float Glass
Why choose Ultra Clear Glass?
1. Higher security. Ultra clear glass has lower iron content, more stringent impurity purification, bring lower risk of spontaneous breakage. More safety for high-rise buildings and super high buildings.
2. Higher transmittance. Visible light transmittance of ultra clear glass near 92%, 3% higher than normal clear float glass.
3. Higher purity. Ultra clear glass is more beautiful than normal clear float glass with a jewel-like blue edge. Restore the original color and present the best visualizations. Suitable for decoration & show cases.
Why choose Jinjing Ultra Clear Glass?

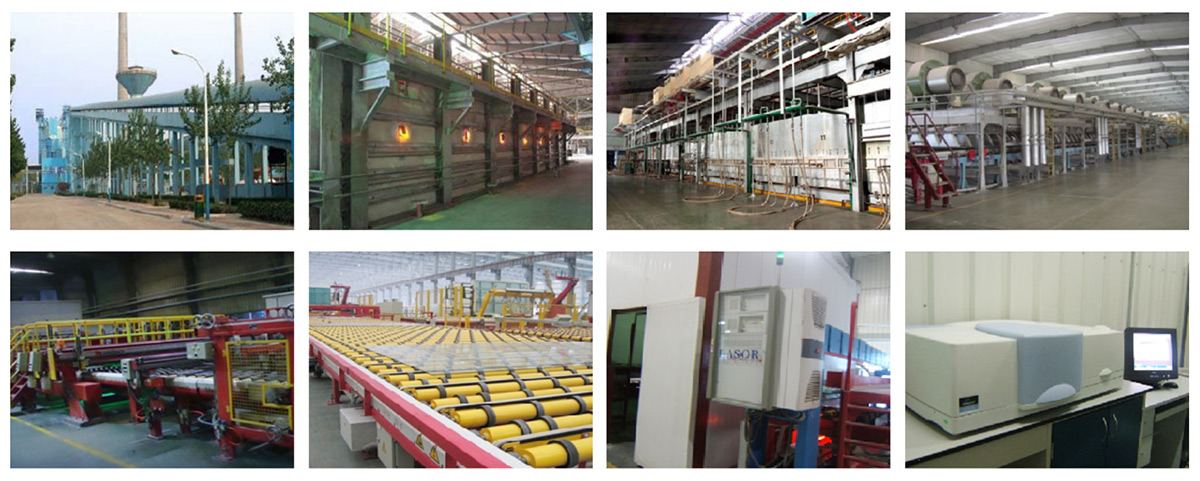

1. Jinjing is the largest ultra clear glass manufacturer in China, 3 float lines with capacity 1800 tons per day. Year-round continuous production. Continuously and steadily provide high quality ultra clear glass to the whole world.
2. Jinjing ultra clear glass is derived from American PPG technology. The production line is strictly designed and constructed in accordance with PPG technology, and equipped with global leading equipment. The raw materials and production process are strictly controlled. Products quality is widely praised by customers and is exported to more than 100 countries and regions around the world.
3. As the first ultra clear glass manufacturer in China, Jinjing has more than 15 years of experience in the production and export of ultra clear glass. At the same time, relying on Jinjing's strong R&D strength, it has continuously improved the production process and increased its production capacity, successively produced 22MM, 25MM super thick ultra clear glass and the world’s biggest ultra clear glass 23000*3300MM.

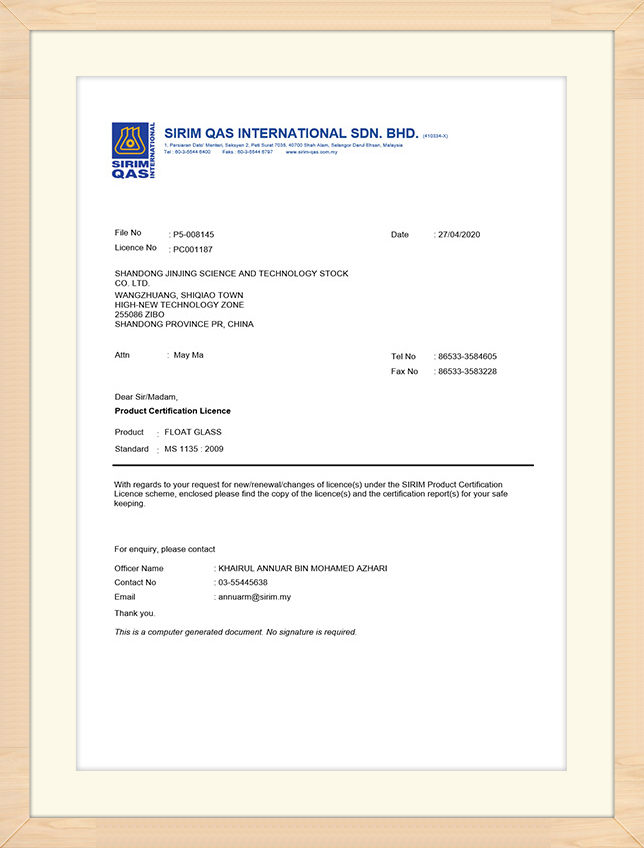

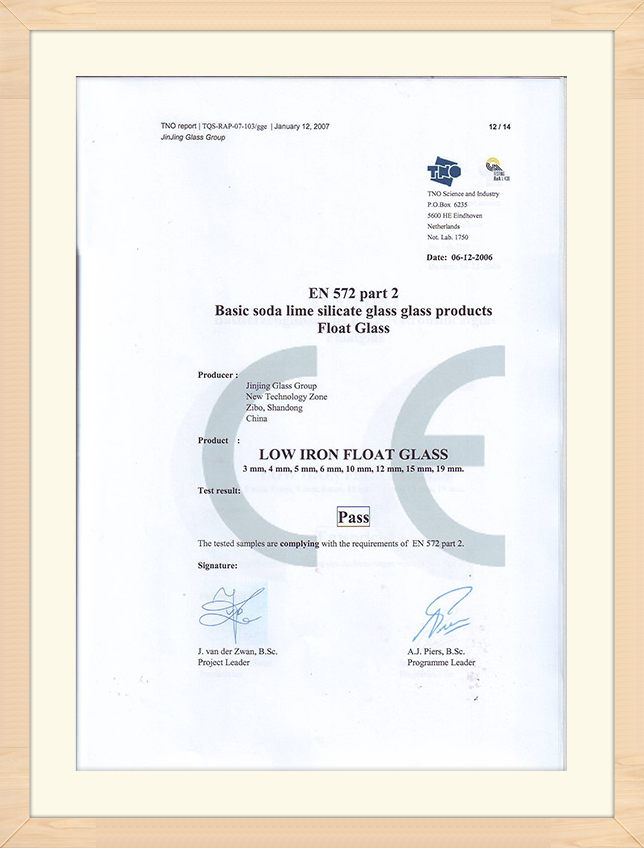

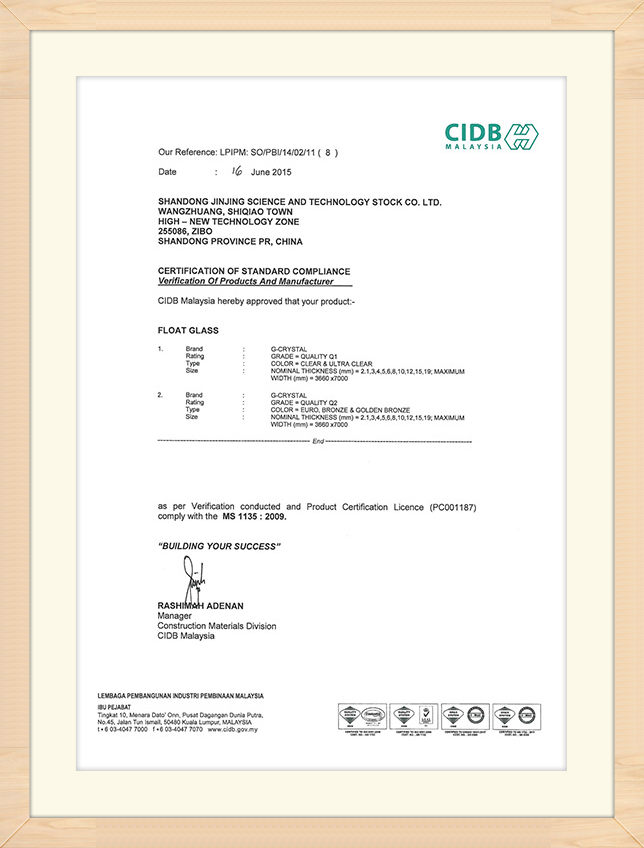

Certificates
Optical Parameters
| Thickness | Visible Light Transmittance | Visible Light Reflectivity | Solar Radiant Coefficient | Shading Coefficient | U Values | Sound Insulation | UV Penet ration | ||||||
| (mm) | Direct Penetration | Reflectivity | Absorb | Total Penetration | Short Wave | Long Wave | Total | (W/m²K) | Rm(dB) | Rw(dB) | Architectural Series | ||
| 3 | 91.6% | 8% | 90% | 8% | 1% | 91% | 1.05 | 0.01 | 1.05 | 5.8 | 26 | 30 | 76% |
| 3.2 | 91.5% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 | 26 | 30 | 75% |
| 4 | 91.4% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 | 27 | 30 | 73% |
| 5 | 91.3% | 8% | 90% | 8% | 2% | 90% | 1.03 | 0.01 | 1.03 | 5.8 | 29 | 32 | 71% |
| 6 | 91.1% | 8% | 89% | 8% | 3% | 90% | 1.02 | 0.01 | 1.03 | 5.7 | 29 | 32 | 70% |
| 8 | 91.0% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.01 | 1.02 | 5.7 | 31 | 34 | 68% |
| 10 | 90.6% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.02 | 1.02 | 5.6 | 33 | 36 | 66% |
| 12 | 90.4% | 8% | 87% | 8% | 5% | 88% | 1.00 | 0.02 | 1.01 | 5.5 | 34 | 37 | 64% |
| 15 | 90.1% | 8% | 86% | 8% | 6% | 87% | 0.99 | 0.02 | 1.00 | 5.5 | 35 | 38 | 61% |
| 19 | 89.7% | 8% | 84% | 8% | 7% | 86% | 0.97 | 0.02 | 0.99 | 5.5 | 37 | 40 | 59% |
| 22 | 89.6% | 8% | 82% | 8% | 9% | 85% | 0.95 | 0.02 | 0.97 | 5.5 | 38 | 43 | 58% |
| 25 | 89.0% | 8% | 81% | 8% | 9% | 84% | 0.93 | 0.02 | 0.95 | 5.5 | 39 | 45 | 56% |
Applications & Projects

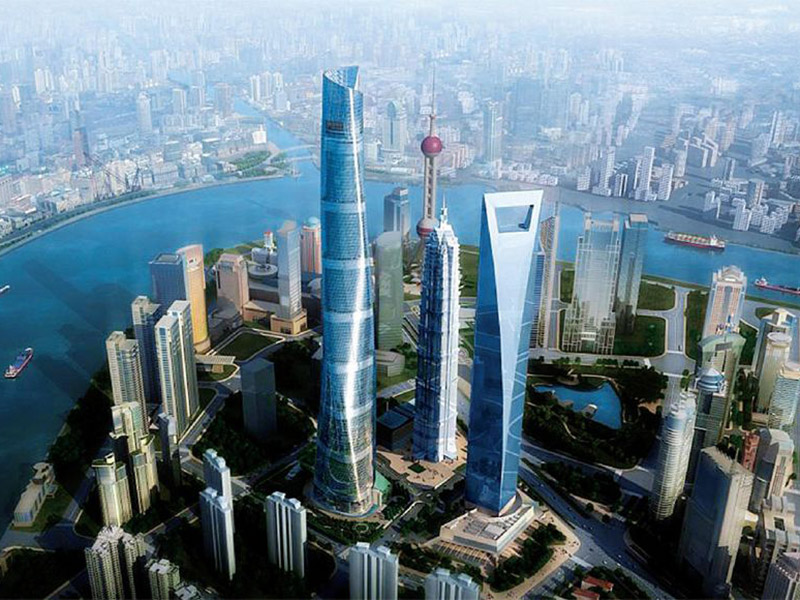

Project Name: Shanghai Tower
Location: Shanghai China
Glass: 8mm 10mm 12mm ultra clear glass for curtain wall & glass ribs
Quantity: 1 million sqm ultra clear glass

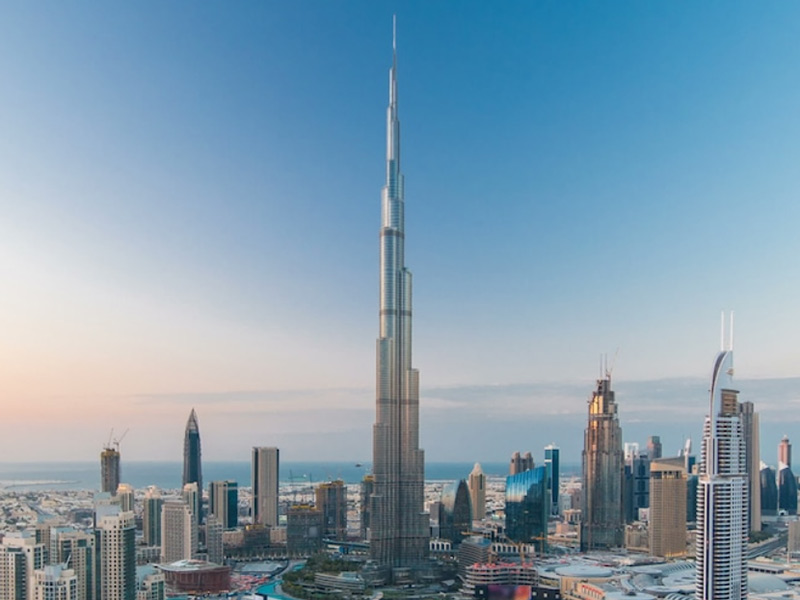

Project Name: Burj Dubai Tower
Location: Dubai UAE
Glass: 8mm 10mm 12mm 15mm ultra clear glass for interior decoration

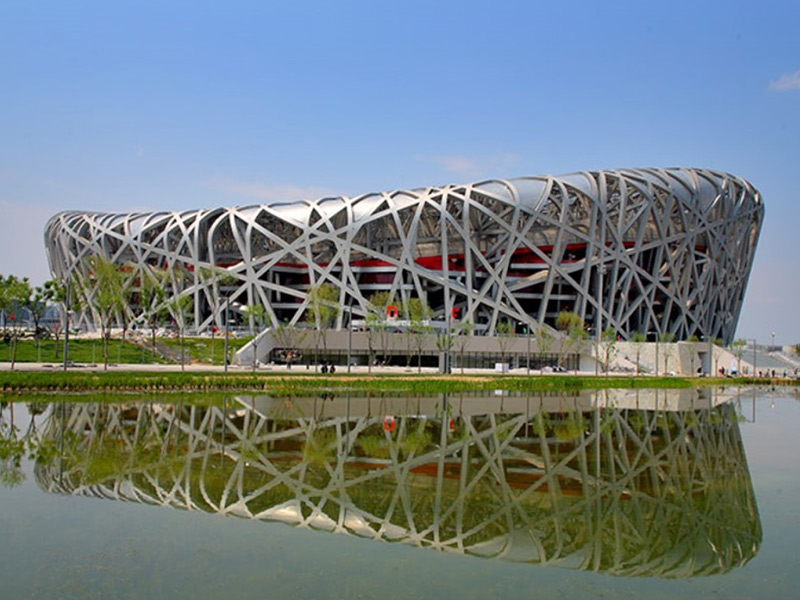

Project Name: The Bird's Nest
Location: Beijing China
Glass: 10mm ultra clear glass for colored glaze

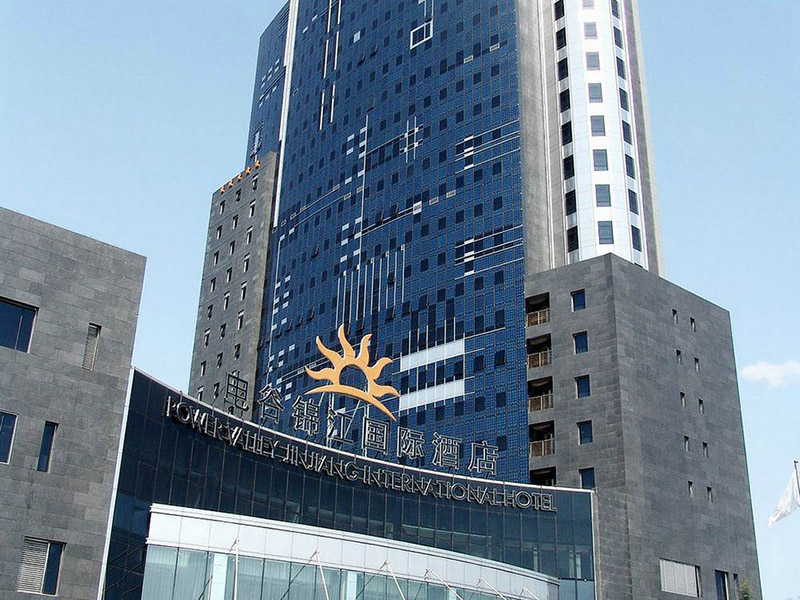

Project Name: Power Valley Jinjiang International Hotel
Location: Hebei China
Glass: 6mm ultra clear glass for BIPV

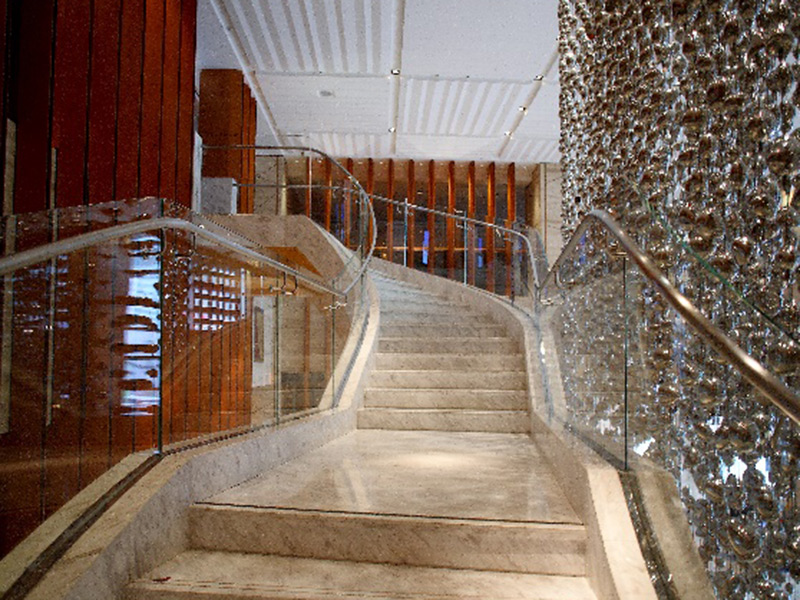

Project Name: Marco Polo Parkside Beijing
Location: Beijing China
Glass: 19mm ultra clear glass for glass fence
Project Name: Apple Store
Location: Shanghai China
Glass: 12mm 15mm ultra clear glass for curtain wall, beams & stairs
Project Name: China Capital Museum
Location: Beijing China
Glass: 8mm 10mm 12mm ultra clear glass for show cases

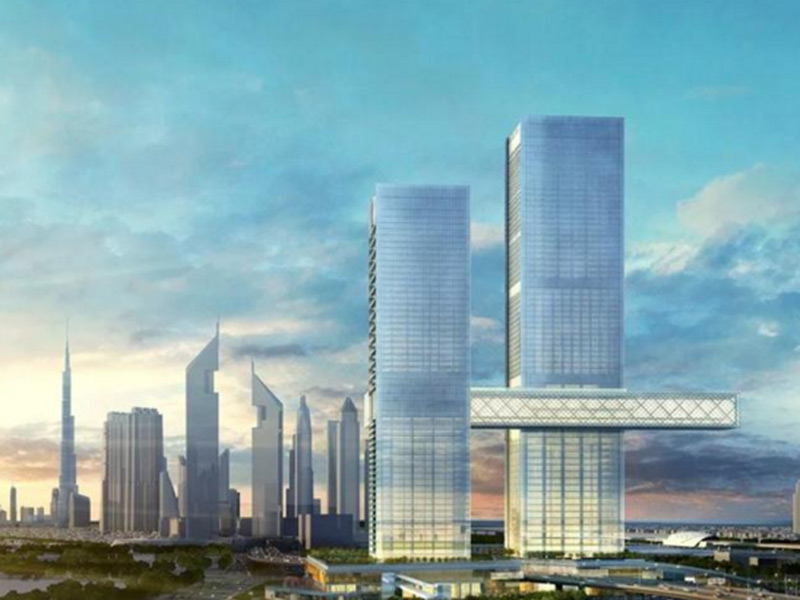

Project Name: ONE ZA’ ABEEL
Location: Dubai UAE
Glass: 6mm 8mm 10mm 12mm ultra clear glass for curtain wall & glass ribs
Quantity: 40000 sqm

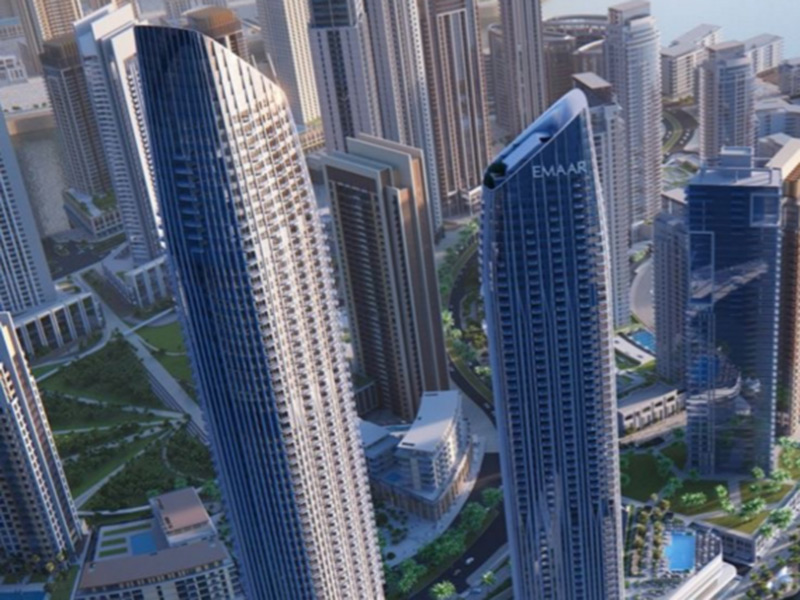

Project Name: THE ADDRESS HARBOUR POINT (TAHP)
Location: Dubai UAE
Glass: 12mm ultra clear glass for glass ribs
